Supreme-X

Supreme-X uses the highest-quality components to deliver the brightest image quality and flicker-free video to catch the eye of the viewer. Suitable for 24/7 operations in the harshest of environments, these rugged displays offer high-end performance at attractive prices. Stadiums, billboard advertisements, banks, railway stations, bus terminals, shopping malls, post offices, schools, restaurants, entertainment venues, and enterprises are only some of the application areas where Supreme-X has proven to be highly successful in engaging, informing and entertaining customers.

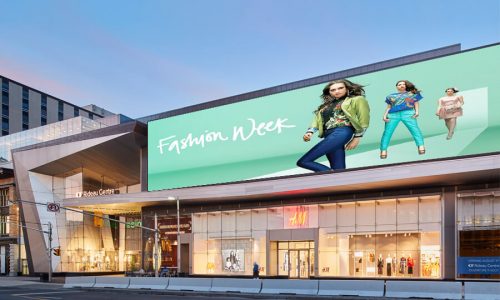

supreme-x image

Features

Lightweight Design : Designed for single-person handling, each Supreme-X module is up to 35% lighter than traditional modules to reduce labor costs in both transportation and installation.

HDR Display Technology : High contrast ratio, excellent brightness and chromaticity make the visuals clearer and more vivid to deliver a superior viewing experience for the spectators.

Rugged And Durable : Supreme-X undergoes 360° water- and dust-proof tests to deliver an IP68 rating, ensuring it is strong enough to resist extreme weather and reliable for prolonged use.

Creative Installation : Integrated adjustable side locks allow wider visual angles and creative freedom for a variety of installation types.

No Ongoing Costs : Supreme-X comes with a 100,000-hour life and no consumable parts, which eliminates the need for any recurring costs.

More Details

Specifications Details
Pixel Pitch 4 5 6 8 10
LED Type SMD1921 3-in-1 LED SMD2727 3-in-1 LED SMD2727 3-in-1 LED SMD3535 3-in-1 LED SMD2727 3-in-1 LED
Module Resolution (WxH) 64 x 32 = 8192 64 x 32 = 2048 32 x 32 = 1024 32 x 16 = 512 32 x 16 = 512
Module Size (mm) 256(W) * 128(H) * 14 320(W) * 160(H) * 14 192(W) * 192(H) * 14 256(W) * 128(H) * 14 320(W) * 160(H) * 14
Module Weight (KG) 0.38 0.42 0.38 0.3 0.42
Module Power Consumption (W) Max 45 45 30 <30 <30, <45
Driving Mode 32 32 32 16 16
Brightness >5000cd >5000cd >5000cd >5000cd >5000cd
