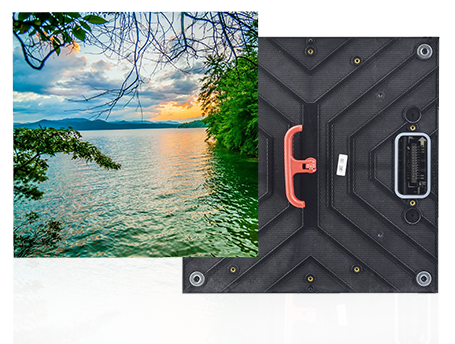

Indoor P4.81 LED Display

Ösel’s P4.81 LED display delivers amazing colors and visuals in any indoor environment. The product comes with a pixel pitch of 4.81mm and 43,222 dots/m2 pixel density. The module measures 256mm x 128mm x 15mm, and has a resolution of 52 x 52. If you are using this LED display between room temperatures of -20℃ to 60℃, you can expect a flawless performance from its auto/manual 256 grade adjustable brightness feature. The product has a lifetime performance of 100,000 hours, while it can operate uninterrupted for 5,000 hours. It is very easy to install and maintain. You can run Ösel’s indoor P4.81 LED display using any Windows operating system. The cabinet is made from iron.

Module specifications

Specification Details
Pixel Pitch 4.81mm
Pixel configuration SMD2121
Module resolution 52×52
Pixel density (pixel/m2) 43222 dots/m2
Module size (LxHxT) 250mm x 250mm x 15mm

Cabinet specifications

Specification Details
Cabinet size (LxHxT) 750mm x 750mm x 120mm
Avg power consumption (w/m2) 300W
max power consumption (w/m2) 900W
cabinet resolution 156×156
cabinet material Steel+Iron

Screen specification

Specification Details
Drive Type 1/16 constant current drive 5124
Brightness ≥1500 cd/㎡
Viewing angle 160° /140°
Viewing distance 4-50m
display frame rate ≥1000 bits/second
Scan frequency ≥60Hz
Gray scale 16.7 million
Power method AC380V/50Hz
lifetime ≥100,000 hours
working temperature ﹣20℃~60℃
power supply 5V40A
brightness adjustment Auto/Manual 256 grade adjustable
constant working time >5000 hrs
working humidity 10%~90% RH
control system nova/linsn
operating system Windows 98/2000/NT/XP
