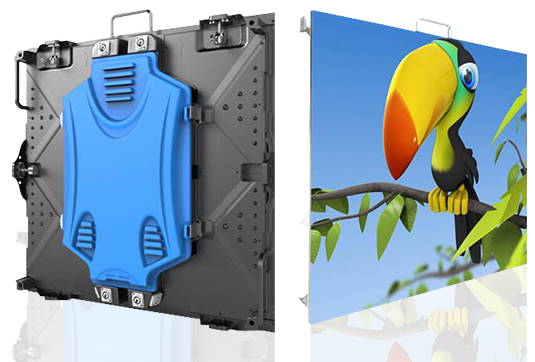

P5 Outdoor LED Display

With 5mm pixel pitch and 1200nit ultra-high brightness, Ösel’s P5 display for outdoor environments delivers superior picture quality with unmatched performance. The module resolution is 32×32, while the module size is 160mmx160mm. Delivering 5,000 hours of nonstop performance with a total lifespan of 100,000 hours, Ösel’s P5 outdoor LED display has a superb refresh rate of 1000Hz. The ultra-wide 120 degree – 160 degree viewing angle ensures that your messaging gets maximum eyeballs even under bright sunlight.

Applications

High-definition pictures
High-definition pictures
Seamless splicing
Seamless splicing
Quick assembling and teardown
Quick assembling and teardown
High level of protection
High level of protection
Low power consumption
Low power consumption
Zero noise
Zero noise
Broad vision
Broad vision
Quality cabinets
Quality cabinets
Intelligent control
Intelligent control …and much more!
Specification Details
Pixel pitch 5mm
Lamp SMD272
Pixel Density Dots/m2 40000
Module resolution 32×32
Module size 160mm*160mm
Scan mode Static current 1/8Scan
Brightness ≧ 6500nits
Cabinet size 640mm*640mm
IP Rate IP65
Color temperature 3200K-9300K
View Angle V/H (120degree-160degree)
Signal Processing 10bits or 16bits
Control Distance CAT5 cable< 100m ,Multimode optic fiber <500m, Singlemode optic fiber >2km
Refresh frequency 60 HZ
Refresh Rate >1000HZ
MTBF  >5000Hours
Lifespan 100000Hours
Working Temperature  Working Temerature :-35℃-60℃ , ,Storage Temperature:-40℃–75 ℃
M2 Power consumption (MAX) <1200W
M2 Power consumption (AVE) <600W
Video display function Synchron display kinds of text, graphics, pictures, signs, flashes, and any signal from TV, VCD,
DVD, Camera, and scanner and so on, support PAL, NTSC.
