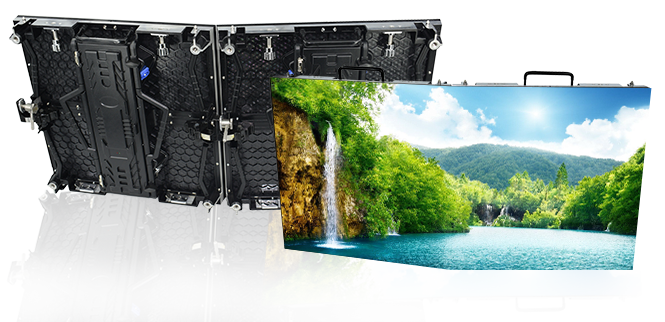

Indoor P2.97 LED Curve
Ösel’s P2.97 LED curve display gives a superior picture quality in any indoor environment. The product comes with a pixel pitch of 2.97mm and 113,367 dots/m2 pixel density. The module measures 250mm x 250mm x 15mm, and has a resolution of 84 x 84. If you are using this LED display between room temperatures of -20℃ to 60℃, you can expect a flawless performance from its auto/manual 256 grade adjustable brightness feature. The product has a lifetime performance of 100,000 hours, while it can operate nonstop for 5,000 hours. Ösel’s indoor P2.97 LED curve display is easy to install and maintain, and can be run using any Windows operating system. The cabinet is made from die-casting aluminum.
Module specifications
| Specification | Details |
|---|---|
| Pixel Pitch | 2.97mm |
| Pixel configuration | SMD2121 |
| Module resolution | 84×84 |
| Pixel density (pixel/m2) | 113367 dots/m2 |
| Module size (LxHxT) | 250mm x 250mm x 15mm |
Cabinet specifications
| Specification | Details |
|---|---|
| Cabinet size (LxHxT) | 500mm x 500mm x 80mm |
| Avg power consumption (w/m2) | 300W |
| max power consumption (w/m2) | 900W |
| cabinet resolution | 168×168 |
| cabinet material | die-casting aluminum |
Screen specification
| Specification | Details |
|---|---|
| Drive Type | 1/28 constant current drive 5024 |
| Brightness | ≥1078cd/㎡ |
| Viewing angle | 160° /160° |
| Viewing distance | 2.97-50m |
| display frame rate | ≥1000 bits/second |
| Scan frequency | ≥60Hz |
| Gray scale | 16.7million |
| Power method | AC380V/50Hz |
| lifetime | ≥100,000 hours |
| working temperature | ﹣20℃～60℃ |
| power supply | 5V40A |
| brightness adjustment | Auto/Manual 256 grade adjustable |
| constant working time | ＞5000 hrs |
| working humidity | 10%～90% RH |
| control system | nova/linsn |
| operating system | Windows98/2000/NT/XP |
