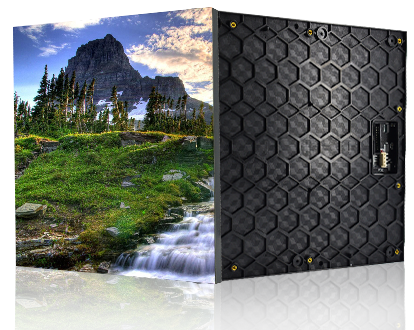

Indoor P2.97 LED Display

Ösel’s P2.97 LED display guarantees outstanding visuals in any indoor environment. The product comes with a pixel pitch of 2.97mm and 113,367 dots/m2 pixel density. The module measures 250mm x 250mm x 15mm, and has a resolution of 84 x 84. The product is easy to install and maintain. If you are using this LED display between room temperatures of -20℃ to 60℃, you can expect a flawless performance from its auto/manual 256 grade adjustable brightness feature. The product has a lifetime performance of 100,000 hours, while it can operate nonstop for 5,000 hours. You can run Ösel’s indoor P2.97 LED display using any Windows operating system. The cabinet is made from die-casting aluminum.

Module specifications

Specification Details
Pixel Pitch 2.97mm
Pixel configuration SMD2121
Module resolution 84×84
Pixel density (pixel/m2) 113367 dots/m2
Module size (LxHxT) 250mm x 250mm x 15mm

Cabinet specifications

Specification Details
Cabinet size (LxHxT) 500mm x 500mm x 80mm
Avg power consumption (w/m2) 300W
max power consumption (w/m2) 900W
cabinet resolution 168×168
cabinet material Die-casting aluminum

Screen specification

Specification Details
Drive Type 1/16 constant current drive 5024
Brightness ≥1920cd/㎡
Viewing angle 160° /140°
Viewing distance 2.97-50m
display frame rate ≥1000 bits/second
Scan frequency ≥60Hz
Gray scale 16.7million
Power method AC380V/50Hz
lifetime ≥100,000 hours
working temperature ﹣20℃~60℃
power supply 5V40A
brightness adjustment Auto/Manual 256 grade adjustable
constant working time >5000 hrs
working humidity 10%~90% RH
control system nova/linsn
operating system Windows98/2000/NT/XP
